BA159 Diodes: Introduction, Equivalents and Pinouts

Standard Diode Rectifiers Fast Recovery =< 500ns, > 200mA (Io) 1.3V @ 40V -65°C~125°C 2 Terminal Tape and Box (TB) DO-204AL, DO-41, Axial Through Hole

The BA159 is a 1 Amp fast recovery rectifier for 400 to 1000 volts. This article features pin assignments, datasheets, characteristics, equivalents, and other details on the BA159 diode. In addition, there is a large inventory of semiconductors, capacitors, resistors and integrated circuits. Feel free to request a quote!

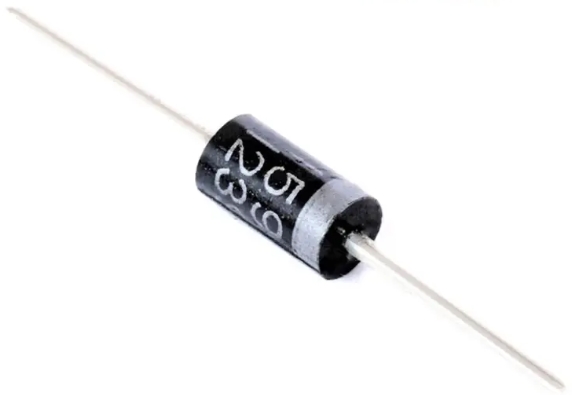

What is a BA159 diode?

BA159 is a Fast Recovery Diode, meaning that it has a short reverse recovery time and high operating frequency for high frequency switching circuits, it is commonly used in high frequency rectification and switching applications.

BA159 Diode Detailed Analysis

BA159 Main Parameters

• Type: Fast Recovery Diode
• Package: DO-41, molded plastic
• Forward voltage drop: Typical value is about 0.7V (under specific current conditions)
• Reverse breakdown voltage: about 100V
• Maximum rectification current: typically 1A
• Reverse recovery time: Fast for high frequency applications
• Temperature range: -65°C to +200°C

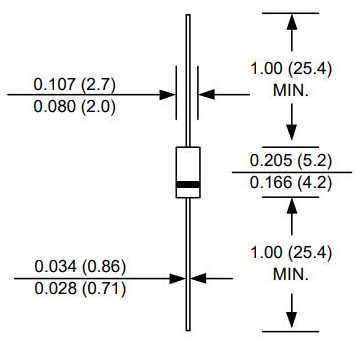

Dimensional drawing of BA159

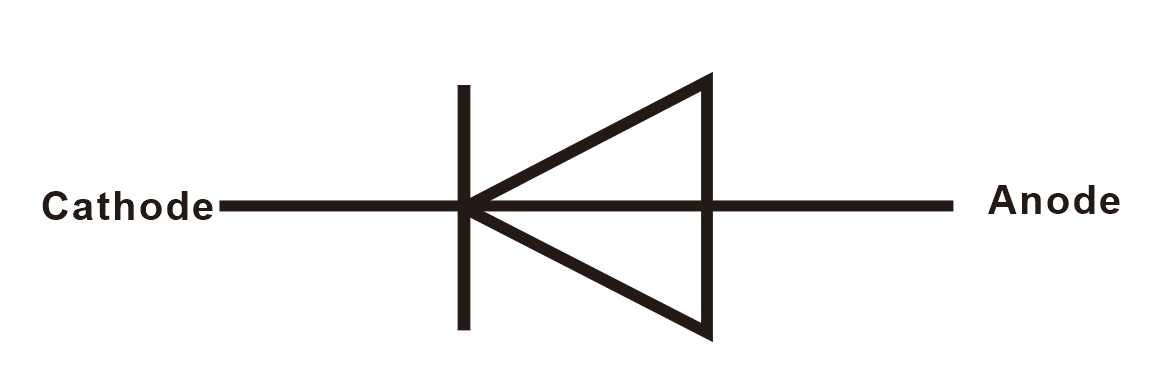

BA159 Symbol

What are the applications of BA159 diodes?

1.High Frequency Rectification: Due to the short reverse recovery time of Schottky diode, BA159 can be used in the rectification part of high frequency switching power supply to realize efficient AC to DC conversion.

2.Clamp Circuits: In protection circuits, BA159 can be used as a clamp diode to prevent voltage overshoot and protect the back-end circuits from high voltage damage.

3.Continuity Diodes: In motor drive and inductive load circuits, the BA159 can be used as a continuity diode to provide a discharge path for inductive loads to avoid damage caused by the generation of reverse electromotive force.

4.Surge Absorbing: By utilizing the fast response characteristics of BA159, it can be used as a surge absorbing diode in circuits to absorb transient high voltage and protect sensitive components.

5.Photovoltaic Inverters: In solar photovoltaic systems, the BA159 can be used in the rectifier portion of the Maximum Power Point Tracking (MPPT) controller to improve the overall efficiency of the system.

6.Radio Frequency (RF) Circuits: Due to the high frequency characteristics of the Schottky diode, the BA159 can also be used in RF circuits for detecting, mixing and switching applications.

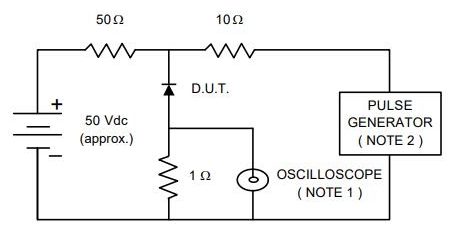

BA159 Test Circuit

BA159 Equivalents

1N4148

Type: Small Signal Switching Diode
Package: DO-35 or SOD-323
Forward voltage drop: approx. 0.7V
Reverse breakdown voltage: approx. 100V
Maximum rectifier current: 200mA
Advantages: Often used in high frequency switching applications with fast switching speeds.

1N4001

Type: Rectifier Diode
Package: DO-41
Forward Voltage Drop: Approx. 0.7V
Reverse breakdown voltage: 50V
Maximum rectifier current: 1A
Advantages: Higher withstand voltage, suitable for low voltage and high current applications.

SS14

Type: Ultra Fast Recovery Rectifier Diode
Package: DO-41
Forward Voltage Drop: Approx. 0.7V
Reverse breakdown voltage: 60V
Maximum rectifier current: 1A
Advantages: Faster reverse recovery time for high frequency applications.

BAV21

Type: Small Signal Switching Diode
Package: SOT-23
Forward Voltage Drop: Approx. 0.7V
Reverse breakdown voltage: Approx. 75V
Maximum rectification current: 200mA
Advantages: Smaller package for SMD applications.

Considerations for Selecting Replacement Models

Voltage and Current: Alternative models should meet or exceed the requirements of the original circuit in terms of withstand voltage and maximum rectification current.
Frequency Characteristics: If the application involves high frequency signals, make sure the replacement model has similar or better reverse recovery time and switching speed.
Package: The package of the replacement model should be compatible with the original circuit for ease of replacement and soldering.
Temperature Characterization: The replacement model should maintain stable performance over the same temperature range.

BA159 Datasheet

Summary

BA159 diodes are widely used in many electronic devices due to their excellent high frequency performance and small size. When an alternative model is required, you can choose a suitable alternative such as 1N4148, 1N4001, SS14 or BAV21 according to the specific application requirements and pay attention to whether its main parameters and package meet the requirements.
