What is a Voltage-controlled oscillator?

What is a Voltage-controlled oscillator?

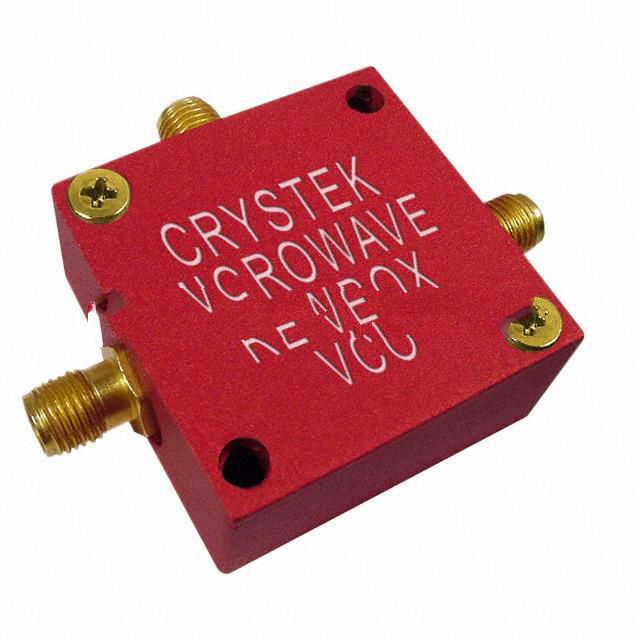

Voltage-controlled oscillator refers to the oscillation circuit (VCO) whose output frequency corresponds to the input control voltage, and the oscillator VCO whose frequency is a function of the input signal voltage.

Basic composition

A voltage-controlled oscillator typically consists of the following components:
Amplifier : Provides the necessary gain to maintain the oscillation.
Feedback network: The output of the oscillator is fed back to the input to form a closed-loop system.
Tuning element : usually an inductor or capacitor that determines the oscillation frequency.
Control Voltage Input: An external voltage used to adjust the oscillation frequency.
Its characteristics are represented by the relationship between the output angular frequency ω0 and the input control voltage UC (figure below). In the figure, the angular frequency ω0 when UC is zero, and 0 is called the free oscillation angular frequency; The slope K0 of the curve at ω0,0 is called the control sensitivity. In a communication or measuring instrument, the input control voltage is the signal (modulated signal) that is intended to be transmitted or measured. Voltage-controlled oscillators are often referred to as frequency modulators and are used to generate frequency modulation signals. In automatic frequency control loops and phase-locked loop loops, the input control voltage is the error signal voltage, and the voltage controlled oscillator is a controlled component in the loop.

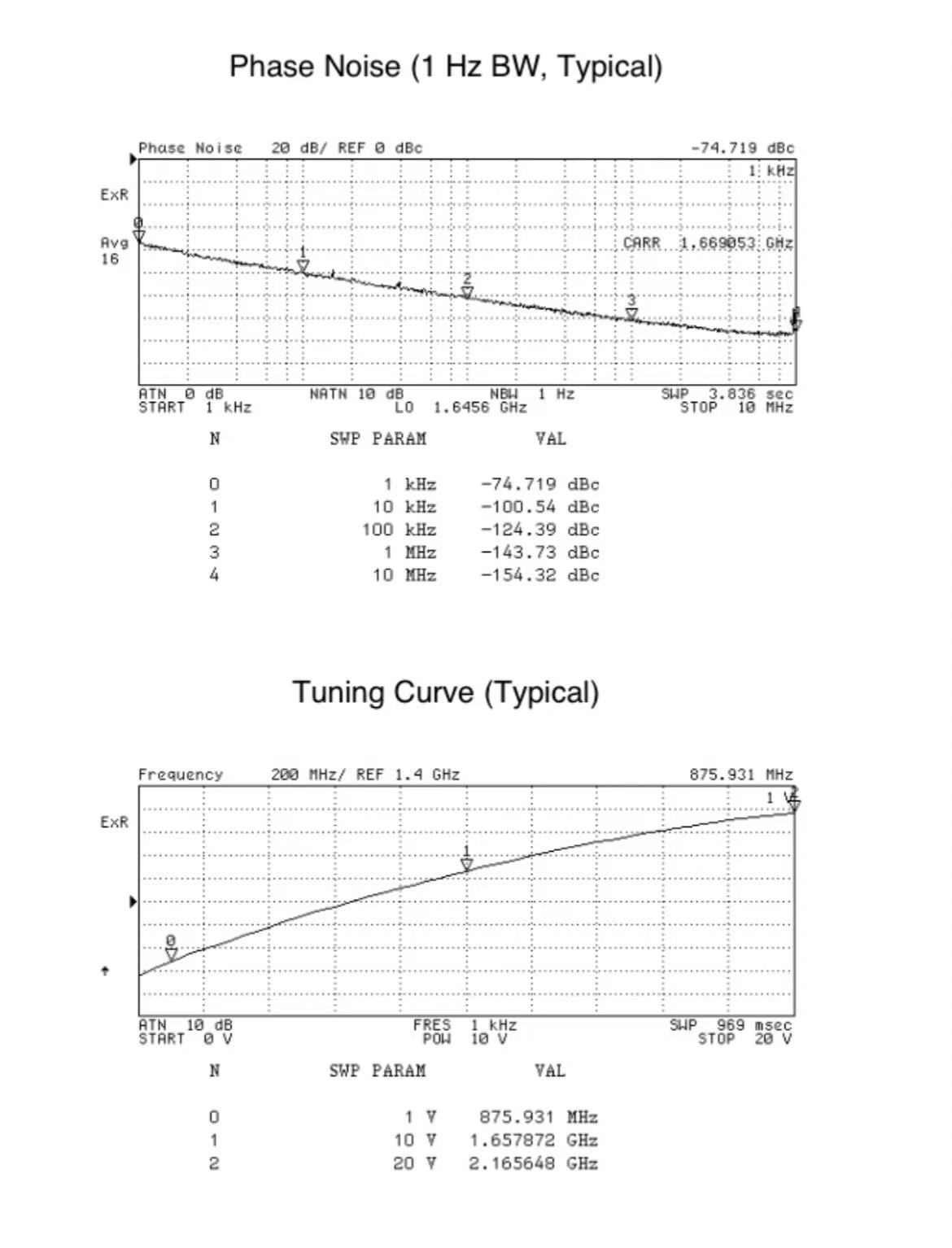

How does the VCO work?

The working principle of a voltage controlled oscillator is based on the self-oscillating principle of the oscillator. In simple terms, a voltage-controlled oscillator changes the frequency of its resonant loop by the input voltage signal, thereby changing the frequency of the output. In voltage-controlled oscillators, a resonant loop is usually used as the oscillation source, and the resonant loop is composed of inductance and capacitance. When an input DC voltage signal is applied to a capacitor, the equivalent capacitance value of the capacitor is changed, thus changing the frequency of the resonant loop.

What is the maximum frequency of a voltage controlled oscillator?

The frequency range of voltage controlled oscillator is one of the most important technical parameters. Different types of voltage controlled oscillator have different frequency range. Generally speaking, the frequency range of voltage controlled oscillator is between several hundred MHz and several GHz. For example, some crystal voltage controlled oscillator may be extended from tens of MHz to hundreds of MHz, suitable for the occasion which requires a high degree of stability. And some high performance LC or RC voltage controlled oscillator may reach higher frequency, suitable for broadband tuning applications.

It is worth noting that the frequency range of voltage controlled oscillator is not fixed, but can be designed and adjusted according to specific needs. Therefore, when selecting a voltage controlled oscillator, the appropriate frequency range should be determined according to the practical application scenario and requirements.

What are the advantages of voltage-controlled oscillator?

1. Wide frequency modulation range: The voltage controlled oscillator can be frequency modulated in a wide frequency range, which makes it very suitable for occasions that require a wide range of frequency adjustment.
2. Good frequency modulation linearity: There is usually a good linear relationship between the control voltage and the oscillation frequency, which makes the frequency control more accurate.
3. Low phase noise: In many applications, phase noise is an important indicator of oscillator performance. Voltage-controlled oscillators typically have low phase noise and are suitable for applications where signal quality is critical.
4. The device is small and small, which is convenient to integrate in other circuits.
5. The frequency response speed is fast, and it can quickly respond to the change of control signal.
6. It can achieve wide-band output, which is suitable for applications in various frequency bands.
7. Phase locking can be realized, so as to improve the performance of the system.

What are the different types of VCO?

Voltage-controlled oscillators (VCOs) can be divided into the following categories according to their structure and working principle:
Varactor diode voltage controlled oscillator: The resonant frequency of the oscillation circuit is adjusted by changing the control voltage by changing the junction capacitance of the varactor diode with the reverse voltage. This type of VCO has a simple structure and good tuning linearity, but the tuning range is narrow, and the frequency stability is greatly affected by temperature.
Inductor-tuned voltage-controlled oscillator: The oscillation frequency is adjusted by changing parameters such as the number of turns of the inductor coil, the air gap, or the position of the core. This type of VCO has a wide tuning range, but the linearity is poor, and the structure is relatively complex.
Capacitive-tuned voltage-controlled oscillator: Adjusts the oscillation frequency by changing the capacitance value of a variable capacitor in an oscillating circuit. This type of VCO has good tuning linearity, but the tuning range is limited by the range of capacitors.
Transistor Voltage Controlled Oscillator: The oscillation frequency is adjusted by using the input resistance or output conductance of the transistor as a function of the control voltage. This type of VCO has high frequency stability, wide tuning range and good linearity, and is one of the most commonly used VCO types in modern communication systems.
Integrated circuit voltage controlled oscillator: The oscillator, amplifier, control circuit, etc. are integrated on a single chip, and the oscillation frequency is adjusted by externally controlling the voltage. This type of VCO is small in size, light in weight, low in power consumption, and high in reliability, and is widely used in modern communication equipment.

What is the use of VCO?

Frequency synthesizers: VCOs can be used in combination with circuits such as phase-locked loops (PLLs) to generate stable frequency-synthesized signals. By adjusting the control voltage of the VCO, it is possible to achieve precise control of the frequency of the synthesized signal.

Frequency modulation: VCOs can be used in frequency modulation techniques such as frequency modulation (FM) and frequency offset keying (FSK). By changing the control voltage of the VCO, the frequency of the modulation signal can be adjusted, so as to realize the transmission and modulation of audio, video and other signals.

Test & Measurement: VCOs are commonly used in the field of test and measurement to generate adjustable test signals. It can be used for applications such as frequency measurement, frequency calibration, frequency response testing, and more.

Audio synthesis: VCOs can be used in audio synthesizers to produce audio signals of different tones. By adjusting the control voltage of the VCO, the tone can be adjusted, so as to realize music synthesis, sound synthesis and other applications.

In general, the role of a voltage-controlled oscillator is to generate an adjustable frequency signal, which is widely used in communication systems, frequency synthesis, frequency modulation, test and measurement, and audio synthesis

How to choose VCO?

When choosing a voltage controlled oscillator, you need to consider the following:

1. Working frequency: According to different application scenarios, you need to choose a voltage controlled oscillator with different working frequency. For example, in communication systems, frequency ranges ranging from hundreds of megahertz to several GHz are often required.

2. Frequency adjustment range: For different application scenarios, voltage controlled oscillators need to have different frequency adjustment ranges. In general, the wider the frequency adjustment range, the wider the range of applications.

3. Phase noise: Phase noise is an important parameter in a frequency synthesizer that affects the performance of the system. When selecting a voltage controlled oscillator, it is necessary to choose a product with low phase noise.

4. Frequency stability: Frequency stability is another important parameter of a voltage controlled oscillator. Products with high frequency stability can ensure the stability and performance of the system.

5. Output waveform: The voltage controlled oscillator can generate a variety of waveforms, such as sine wave, square wave, etc. It is necessary to select the appropriate waveform according to the specific application scenario.

Applications of voltage-controlled oscillators

1. Communication system: In wireless communication systems, voltage controlled oscillators are widely used in key components such as frequency synthesizers, modulators, and demodulators. By adjusting the control voltage, precise frequency adjustment and phase control can be achieved, thus ensuring the stability and reliability of the communication system.

2. Radar system: Radar system needs to generate a stable RF signal for target detection and ranging. Voltage-controlled oscillators provide high-precision, low-noise RF signals that meet the high signal quality requirements of radar systems.

3. Electronic measuring instruments: In electronic measuring instruments, such as spectrum analyzers, network analyzers, etc., voltage controlled oscillators are used as signal sources. By adjusting the control voltage, test signals of different frequencies can be generated, which can achieve accurate measurements of the device under test.

4. Control system: In some automatic control systems, voltage controlled oscillators also play an important role. For example, it is possible to change the speed of the motor or adjust the sampling frequency of the sensor by adjusting the control voltage.

When using a voltage controlled oscillator, you need to pay attention to the following:
1. Stability of control voltage: The stability of control voltage will directly affect the stability of the oscillation frequency, so it is necessary to use a stable power supply to provide the control voltage.
2. Temperature influence: The performance of the voltage controlled oscillator may be affected by temperature, so it needs to be used within a suitable temperature range, and appropriate heat dissipation measures should be considered.
3. Electromagnetic compatibility: Voltage controlled oscillators may produce electromagnetic radiation or be affected by electromagnetic interference, and it is necessary to pay attention to electromagnetic compatibility with surrounding equipment.

Difference between a cavity oscillator and a CNC oscillator？

Voltage-controlled oscillators (VCOs) and numerically controlled oscillators (NCOs) are significantly different in terms of function and application scenarios
A voltage-controlled oscillator (VCO) is an oscillator that adjusts the frequency by changing the capacitance of a transistor, and is mainly used in radio frequency circuits, such as radio communications, satellite communications, and radar. Its accuracy is high, it is able to provide a more stable and accurate signal, and it has a wide frequency range that can reach several gigahertz or even more
A numerically controlled oscillator (NCO) is a device that can generate an output signal with a finely tuned frequency, and is commonly used in experiments such as vibrating screen nebulizers. By controlling the vibration frequency, the metal plate resonates to form a specific shape of sand particles.
