Molex 0908140920
- 0908140920
- Molex
- PICOFLEX SMT HEADER 20POS
- Rectangular Connectors - Headers, Male Pins
- 0908140920 Datenblatt
- -
- -
- Lead free / RoHS Compliant
- 4693
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number 0908140920 |
Category Rectangular Connectors - Headers, Male Pins |
Manufacturer Molex |
Description PICOFLEX SMT HEADER 20POS |
Package - |
Series Picoflex? PF-50 90814 |
Features Board Guide |
Mounting Type Surface Mount |
Termination Solder |
Style Board to Cable/Wire |
Contact Material Cartridge Brass |
Number of Positions 20 |
Connector Type Header |
Number of Positions Loaded All |
Number of Rows 1 |
Insulation Color Natural |
Contact Type Male Blade |
Fastening Type Push-Pull |
Material Flammability Rating UL94 V-0 |
Pitch - Mating 0.050" (1.27mm) |
Shrouding Shrouded - 2 Wall |
Contact Length - Mating 0.085" (2.15mm) |
Insulation Height 0.161" (4.10mm) |
Contact Shape Rectangular |
Contact Finish - Mating Tin |
Contact Finish - Post Tin |
Insulation Material Polyamide (PA), Nylon, Glass Filled |
Contact Finish Thickness - Mating 118.1µin (3.00µm) |
Package_case - |
0908140920 Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu 0908140920 ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
Molex
Molex brings together innovation and technology to deliver electronic solutions to customers worldwide. With a presence in more than 40 countries, Molex offers a full suite of solutions and services for many markets, including ...

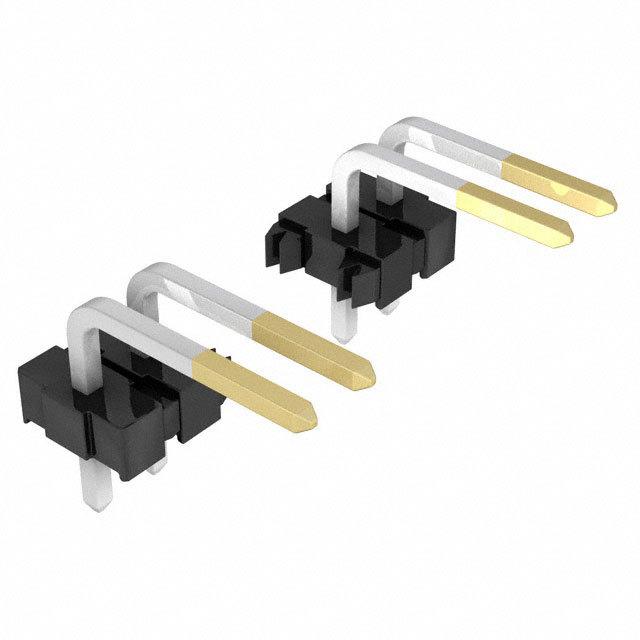

0026482062
CONN HEADER 6POS .156 R/A GOLD

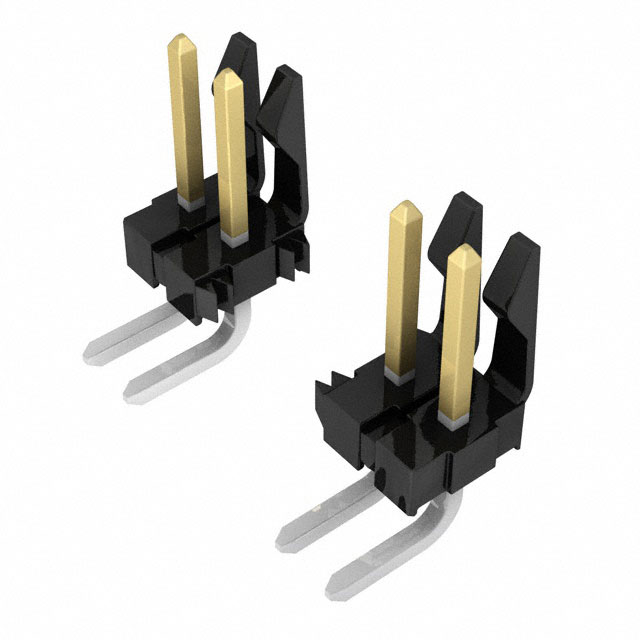

0026482056
CONN HEADER 6POS .156 R/A GOLD

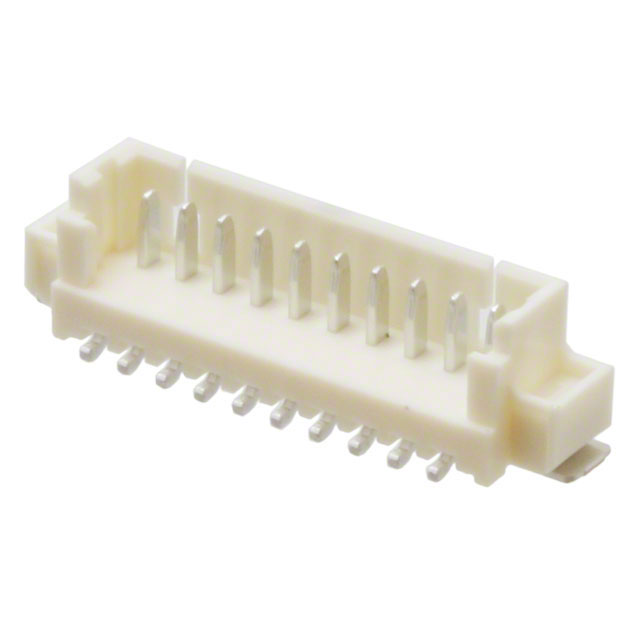

0533981071
CONN HEADER 6POS .156 R/A GOLD

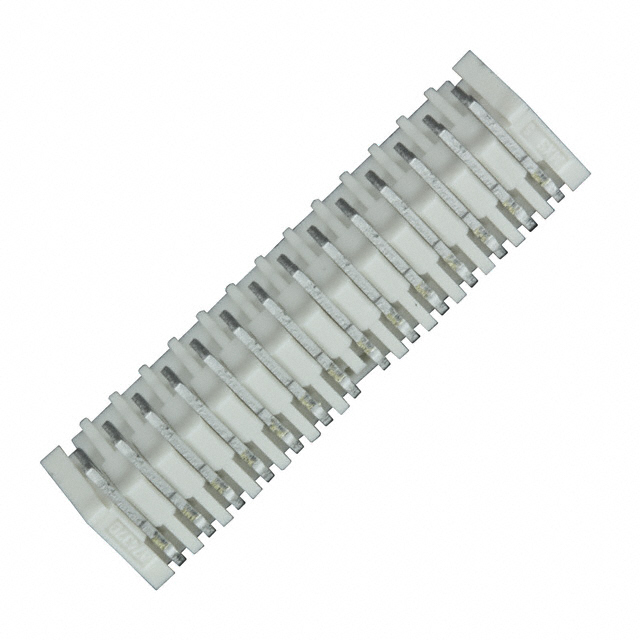

0874371443
