Panasonic Electronic Components 16SEPC100M
- 16SEPC100M
- Panasonic Electronic Components
- CAP ALUM POLY 100UF 20% 16V T/H
- Aluminum - Polymer Capacitors
- 16SEPC100M Datenblatt
- Radial, Can
- Cut Tape (CT)
- Lead free / RoHS Compliant
- 4531
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number 16SEPC100M |
Category Aluminum - Polymer Capacitors |
Manufacturer Panasonic Electronic Components |
Description CAP ALUM POLY 100UF 20% 16V T/H |
Package Cut Tape (CT) |
Series OS-CON™, SEPC |
Type Polymer |
Features - |
Operating Temperature -55°C ~ 105°C |
Mounting Type Through Hole |
Package / Case Radial, Can |
Applications General Purpose |
Tolerance ±20% |
Size / Dimension 0.248\" Dia (6.30mm) |
Impedance - |
Voltage - Rated 16 V |
Lead Spacing 0.098\" (2.50mm) |
Ratings - |
Height - Seated (Max) 0.236\" (6.00mm) |
Capacitance 100 µF |
ESR (Equivalent Series Resistance) 24mOhm |
Lifetime @ Temp. 5000 Hrs @ 105°C |
Ripple Current @ Low Frequency 124.5 mA @ 120 Hz |
Ripple Current @ High Frequency 2.49 A @ 100 kHz |
Surface Mount Land Size - |
Package_case Radial, Can |
16SEPC100M Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu 16SEPC100M ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
Panasonic Electronic Components
Panasonic Corporation and its subsidiaries (Panasonic Batteries, Panasonic Electronic Components & Panasonic Industrial Devices) are innovators in consumer electronics and technology products. Guided by a mission to contribute to the progress and development of ...
10SVPE220M
CAP ALUM POLY 220UF 20% 10V SMD
EEF-SX0E471ER
CAP ALUM POLY 220UF 20% 10V SMD
EEH-ZC1H220P
CAP ALUM POLY 220UF 20% 10V SMD

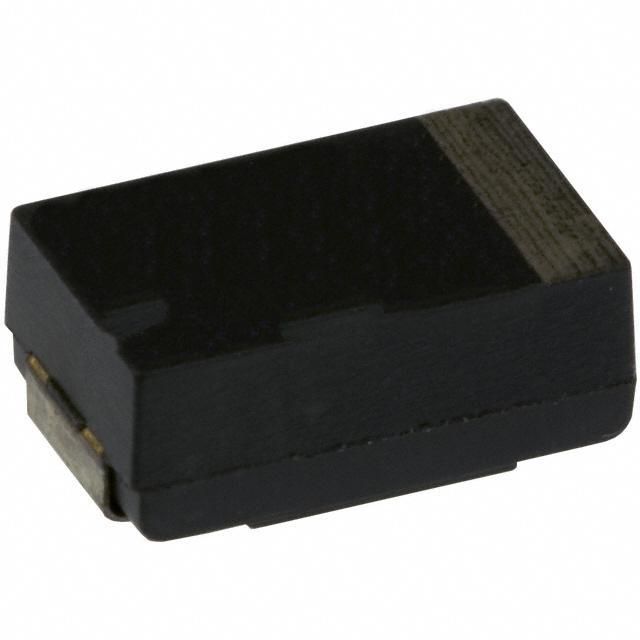

EEF-UD0K680R
CAP ALUM POLY 220UF 20% 10V SMD

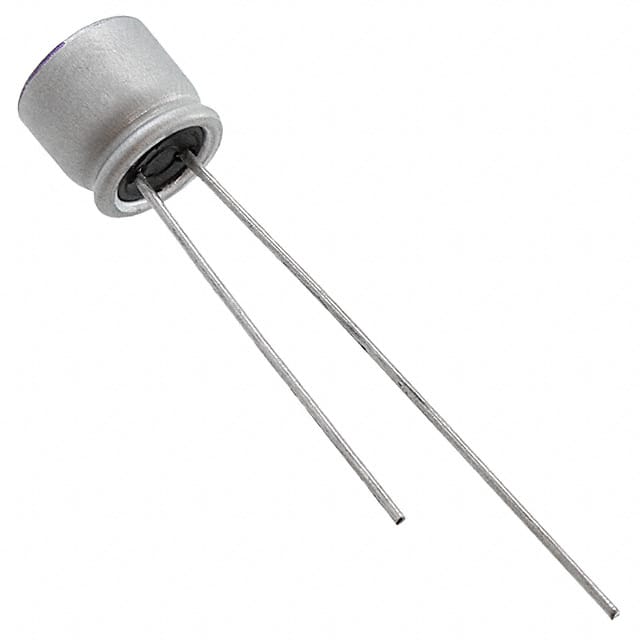

16SEPF180M
CAP ALUM POLY 220UF 20% 10V SMD

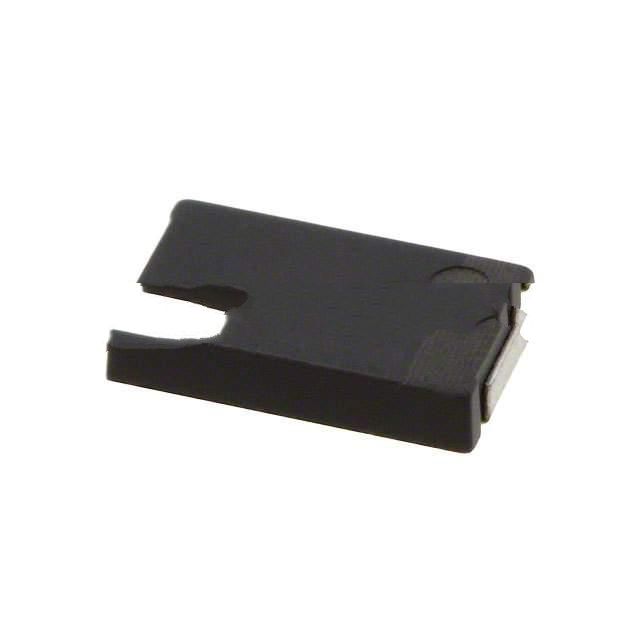

EEF-CT1C470R
CAP ALUM POLY 220UF 20% 10V SMD

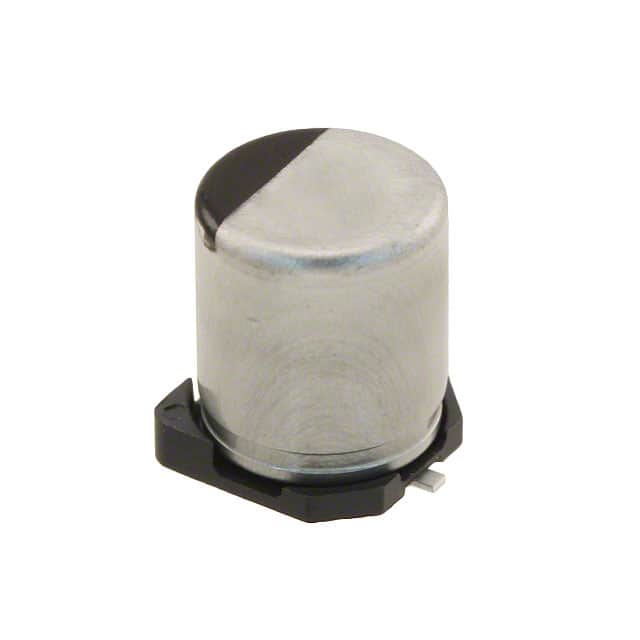

EEH-ZC1V220R
CAP ALUM POLY 220UF 20% 10V SMD

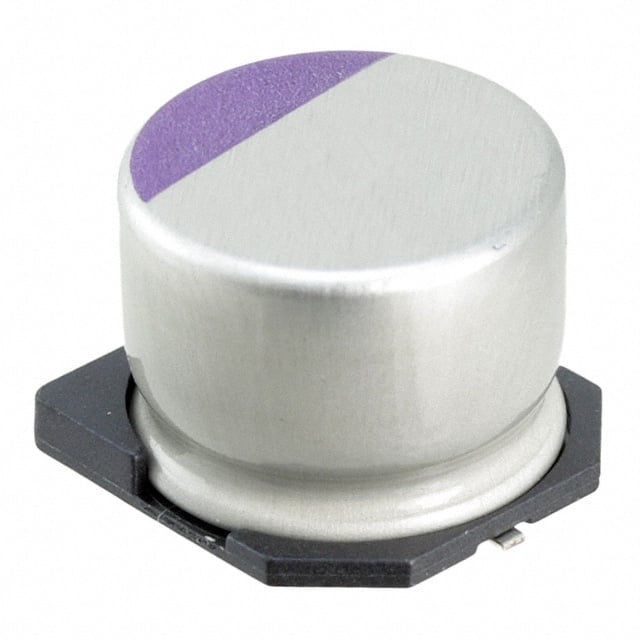

6SVP330M
