Würth Elektronik 649018227222
- 649018227222
- Würth Elektronik
- WR-MPC4 MINI POWER WR-NECTOR
- Rectangular Connectors - Headers, Male Pins
- 649018227222 Datenblatt
- -
- -
- Lead free / RoHS Compliant
- 4210
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number 649018227222 |
Category Rectangular Connectors - Headers, Male Pins |
Manufacturer Würth Elektronik |
Description WR-MPC4 MINI POWER WR-NECTOR |
Package - |
Series WR-MPC4 |
Features Board Lock |
Operating Temperature -40°C ~ 105°C |
Mounting Type Through Hole, Right Angle |
Termination Solder |
Style Board to Cable/Wire |
Current Rating 6A |
Contact Material Nickel |
Number of Positions 18 |
Voltage Rating 600V |
Connector Type Header |
Number of Positions Loaded All |
Number of Rows 2 |
Insulation Color White |
Contact Type Male Pin |
Fastening Type Locking Ramp |
Material Flammability Rating UL94 V-0 |
Pitch - Mating 0.165" (4.20mm) |
Shrouding Shrouded - 4 Wall |
Contact Length - Post 0.138" (3.50mm) |
Insulation Height 0.394" (10.00mm) |
Contact Shape Square |
Contact Finish - Mating Tin |
Contact Finish - Post Tin |
Insulation Material Polyamide (PA66), Nylon 6/6 |
Row Spacing - Mating 0.165" (4.20mm) |
Package_case - |
649018227222 Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu 649018227222 ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
Würth Elektronik
Wurth Electronics - Wurth Electronics eiSos GmbH & Co. KG is a manufacturer of electronic and electromechanical components for the electronics industry. Production sites in Europe, Asia and North America supply a growing number ...
690357281276
WR-MM MALE SMT CONNECTOR
662109145021
WR-MM MALE SMT CONNECTOR

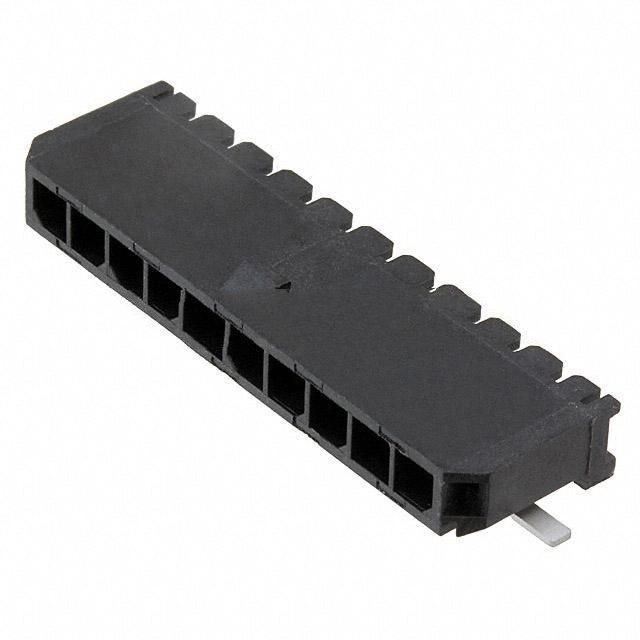

662110145021
WR-MM MALE SMT CONNECTOR
64901829522
WR-MM MALE SMT CONNECTOR
649020227222
WR-MM MALE SMT CONNECTOR

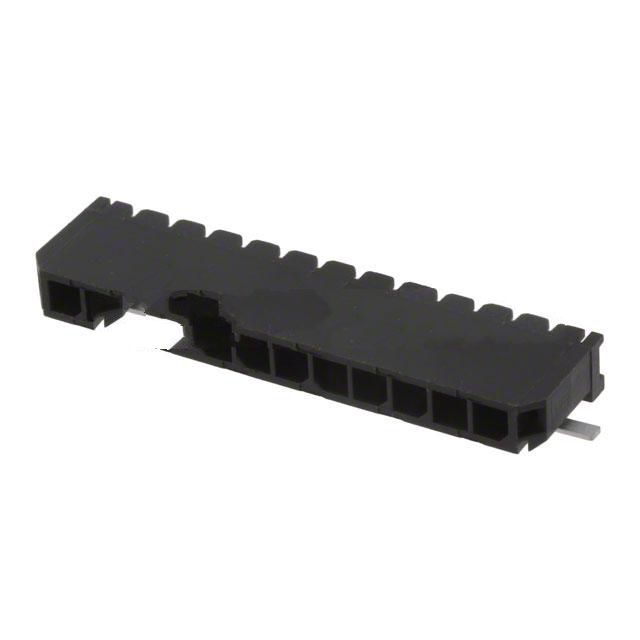

662112145021
WR-MM MALE SMT CONNECTOR

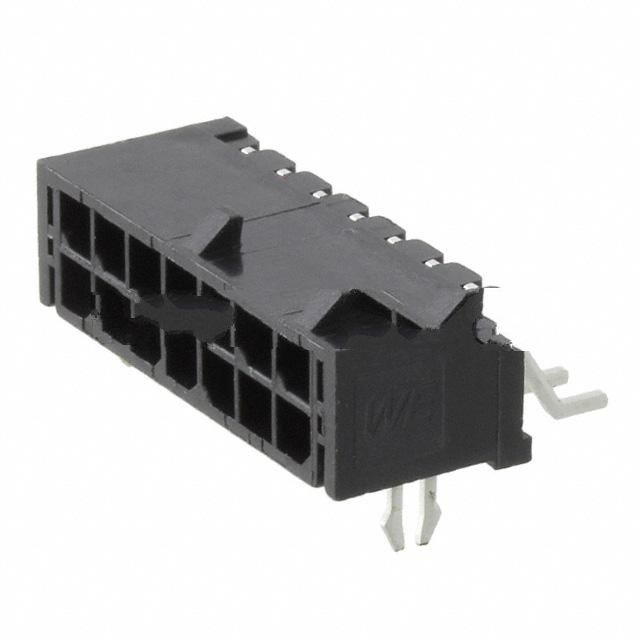

662014230822
WR-MM MALE SMT CONNECTOR

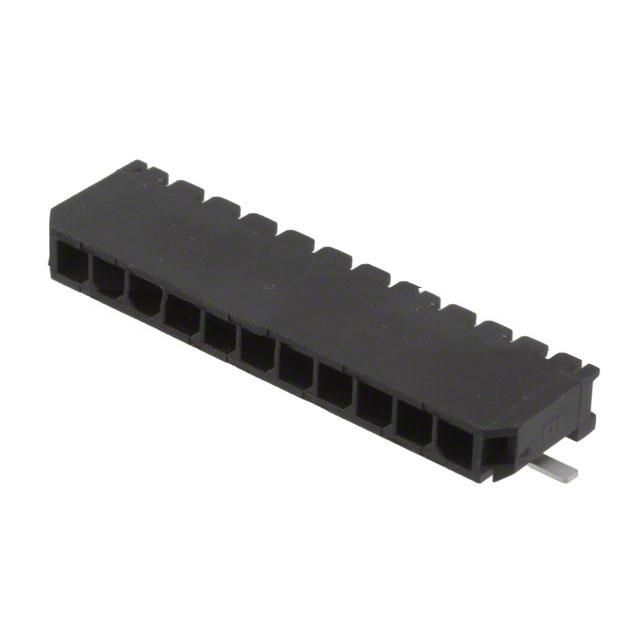

662111145021
