Molex Connector Corporation 90130-1234
- 90130-1234
- Molex Connector Corporation
- CONN HEADER 34POS .100" STR GOLD
- Rectangular Connectors - Headers, Male Pins
- 90130-1234 Datenblatt
- -
- -
- Lead free / RoHS Compliant
- 3748
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number 90130-1234 |
Category Rectangular Connectors - Headers, Male Pins |
Manufacturer Molex Connector Corporation |
Description CONN HEADER 34POS .100" STR GOLD |
Package - |
Series C-Grid III? 90130 |
Mounting Type Through Hole |
Termination Solder |
Style Board to Cable/Wire |
Contact Material Brass |
Number of Positions 34 |
Connector Type Header |
Number of Positions Loaded All |
Number of Rows 2 |
Insulation Color Black |
Contact Type Male Pin |
Fastening Type Latch Holder |
Material Flammability Rating UL94 V-0 |
Pitch - Mating 0.100" (2.54mm) |
Shrouding Shrouded - 4 Wall |
Contact Length - Mating 0.266" (6.75mm) |
Contact Length - Post 0.114" (2.90mm) |
Insulation Height 0.429" (10.90mm) |
Contact Shape Square |
Contact Finish - Mating Gold |
Contact Finish - Post Tin |
Insulation Material Polyester, Glass Filled |
Overall Contact Length 0.510" (12.95mm) |
Contact Finish Thickness - Mating 15µin (0.38µm) |
Row Spacing - Mating 0.100" (2.54mm) |
Package_case - |
90130-1234 Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu 90130-1234 ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
Molex Connector Corporation
Molex brings together innovation and technology to deliver electronic solutions to customers worldwide. With a presence in more than 40 countries, Molex offers a full suite of solutions and services for many markets, including ...
15-91-3074
CONN HEADER 7POS .100 R/A SMD
43650-1104
CONN HEADER 7POS .100 R/A SMD
22-28-8194
CONN HEADER 7POS .100 R/A SMD

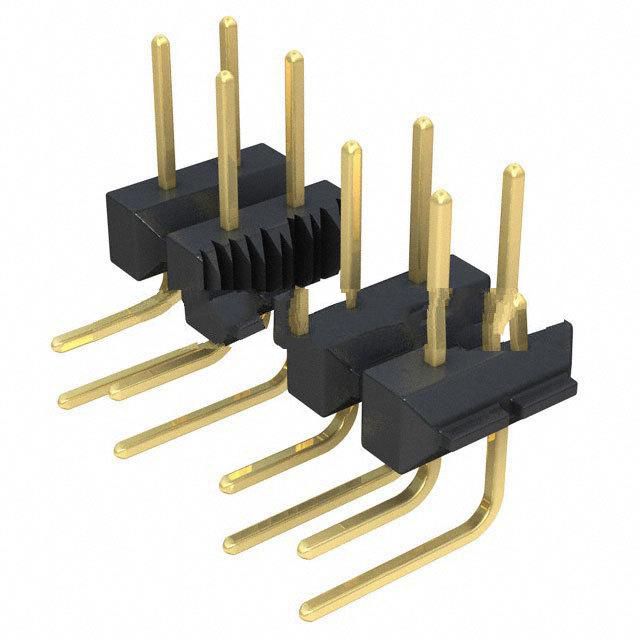

10-89-4182
CONN HEADER 7POS .100 R/A SMD

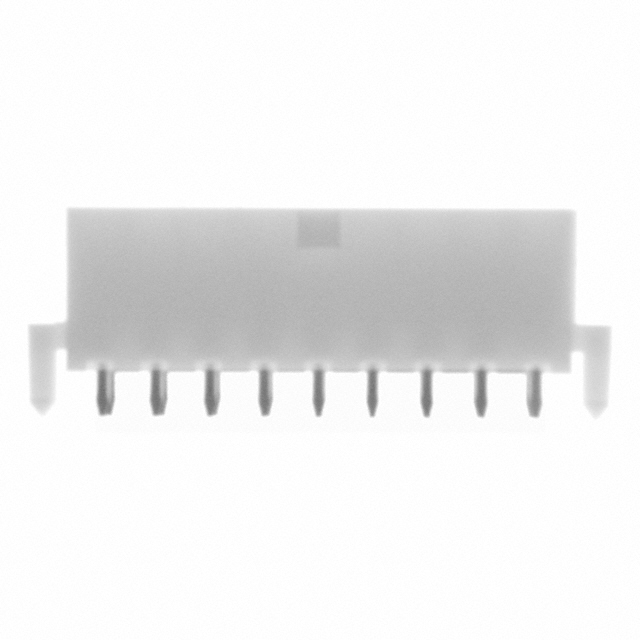

39-28-9188
