Analog Devices Inc. ADG804YRMZ-REEL7
Das Bild dient nur als Referenz, bitte beachten Sie die Produktspezifikation
- ADG804YRMZ-REEL7
- Analog Devices Inc.
- IC MULTIPLEXER 4X1 10MSOP
- Interface - Analog Switches, Multiplexers, Demultiplexers
- ADG804YRMZ-REEL7 Datenblatt
- 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width)
- Cut Tape (CT)
-
Lead free / RoHS Compliant - 3705
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Lieferservice:
Zahlungsarten:
| Part Number ADG804YRMZ-REEL7 |
| Category Interface - Analog Switches, Multiplexers, Demultiplexers |
| Manufacturer Analog Devices Inc. |
| Description IC MULTIPLEXER 4X1 10MSOP |
| Package Cut Tape (CT) |
| Series - |
| Operating Temperature -40°C ~ 125°C (TA) |
| Mounting Type Surface Mount |
| Package / Case 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) |
| Supplier Device Package 10-MSOP |
| Number of Circuits 1 |
| On-State Resistance (Max) 650mOhm |
| Voltage - Supply, Single (V+) 1.65V ~ 3.6V |
| Multiplexer/Demultiplexer Circuit 4:1 |
| Switch Circuit SP4T |
| -3db Bandwidth 33MHz |
| Voltage - Supply, Dual (V±) - |
| Switch Time (Ton, Toff) (Max) 29ns, 6ns |
| Charge Injection 28pC |
| Channel Capacitance (CS(off), CD(off)) 24pF, 105pF |
| Current - Leakage (IS(off)) (Max) 2nA |
| Crosstalk -75dB @ 100kHz |
| Channel-to-Channel Matching (ΔRon) 40mOhm |
| Package_case 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) |
ADG804YRMZ-REEL7 Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu ADG804YRMZ-REEL7 ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
ADG804YRMZ-REEL7 Verwandte Produkte
Bemerkungen
Analog Devices Inc.
Analog Devices has built one of the longest standing, highest growth companies within the technology sector utilizing cultural pillars such as innovation, performance, and excellence. Acknowledged industry-wide as the world leader in data ...
ADG858BCPZ-REEL7
IC SWITCH QUAD SPDT 16LFCSP
ADG819BRTZ-500RL7
IC SWITCH QUAD SPDT 16LFCSP

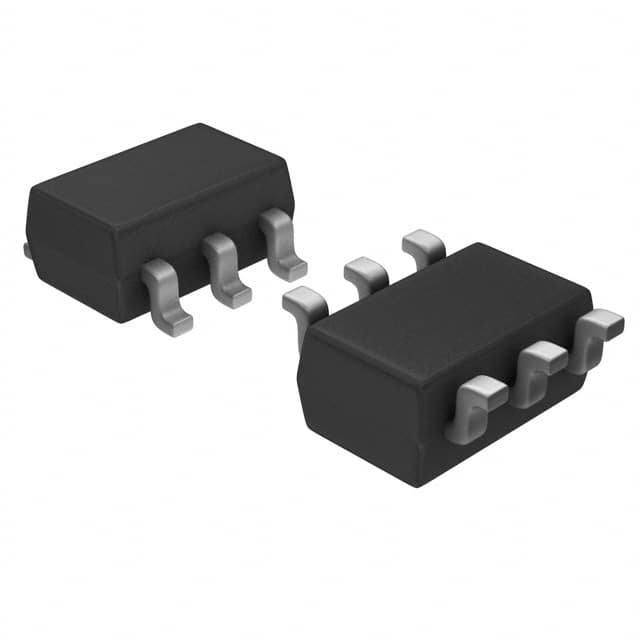

ADG801BRTZ-500RL7
IC SWITCH QUAD SPDT 16LFCSP

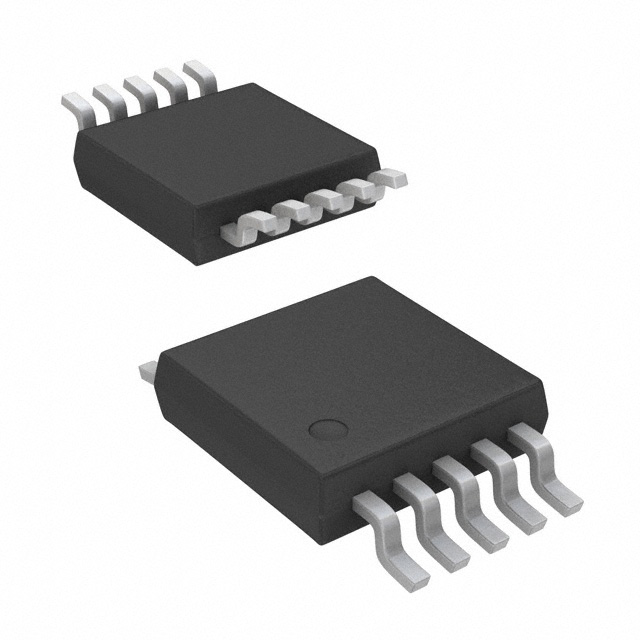

ADG621BRMZ-REEL
