XP Power IMM0205S3V3
- IMM0205S3V3
- XP Power
- DC-DC CONV 2W SGL OUT MED SIP
- DC DC Converters
- IMM0205S3V3 Datenblatt
- 8-SIP Module, 5 Leads
- 8-SIP Module, 5 Leads
- Lead free / RoHS Compliant
- 2547
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number IMM0205S3V3 |
Category DC DC Converters |
Manufacturer XP Power |
Description DC-DC CONV 2W SGL OUT MED SIP |
Package 8-SIP Module, 5 Leads |
Series IMM02 |
Type Isolated Module |
Features Remote On/Off, OCP, OVP, SCP |
Operating Temperature -20°C ~ 100°C |
Mounting Type Through Hole |
Package / Case 8-SIP Module, 5 Leads |
Applications Medical |
Number of Outputs 1 |
Control Features Enable, Active High |
Voltage - Input (Min) 4.5V |
Voltage - Input (Max) 9V |
Voltage - Output 1 3.3V |
Current - Output (Max) 606mA |
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
Power (Watts) 2W |
Voltage - Isolation 1.5kV |
Efficiency 79% |
Package_case 8-SIP Module, 5 Leads |
IMM0205S3V3 Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu IMM0205S3V3 ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
XP Power
IMM0112D15
DC-DC CONV, 1W, MEDICAL APPROVAL
IMM0105D05
DC-DC CONV, 1W, MEDICAL APPROVAL
IMM0112D12
DC-DC CONV, 1W, MEDICAL APPROVAL
IMM0112D05
DC-DC CONV, 1W, MEDICAL APPROVAL
IMM0112D03
DC-DC CONV, 1W, MEDICAL APPROVAL

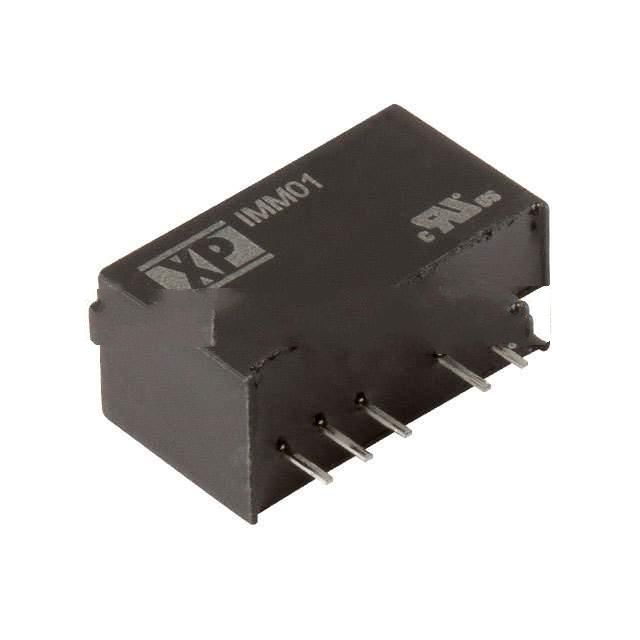

IMM0105D12
DC-DC CONV, 1W, MEDICAL APPROVAL

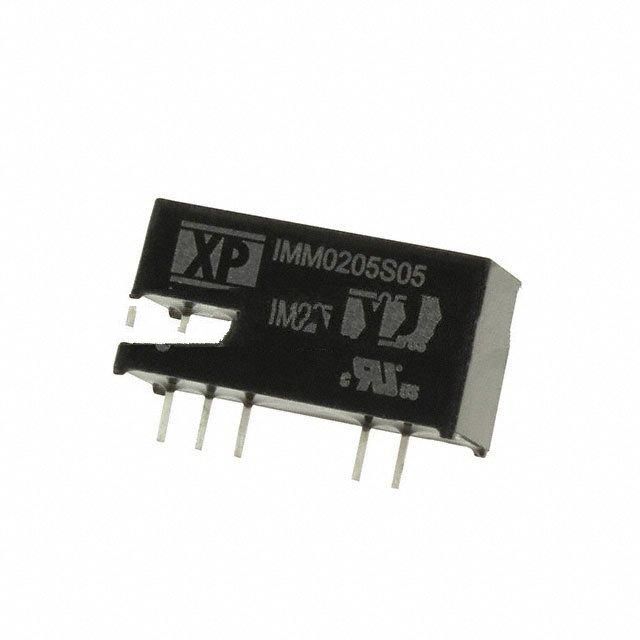

IMM0212S12
