Vishay Semiconductor Opto Division VOL3120-X001T
- VOL3120-X001T
- Vishay Semiconductor Opto Division
- OPTOISO 5.3KV GATE DRIVER 5LSOP
- Isolators - Gate Drivers
- VOL3120-X001T Datenblatt
- 6-SOIC (0.295", 7.50mm Width), 5 Leads
- 6-SOIC (0.295", 7.50mm Width) 5 Leads
- Lead free / RoHS Compliant
- 26973
- Spot-Inventar/autorisierte Händler/Werksüberschuss-Inventar
- 1-Jahres-Qualitätssicherung 》
- Klicken Sie hier, um Preise zu erhalten
Part Number VOL3120-X001T |
Category Isolators - Gate Drivers |
Manufacturer Vishay Semiconductor Opto Division |
Description OPTOISO 5.3KV GATE DRIVER 5LSOP |
Package 6-SOIC (0.295", 7.50mm Width) 5 Leads |
Series - |
Voltage - Supply 15 V ~ 32 V |
Operating Temperature -40°C ~ 100°C |
Mounting Type Surface Mount |
Package / Case 6-SOIC (0.295", 7.50mm Width), 5 Leads |
Supplier Device Package 5-LSOP |
Number of Channels 1 |
Technology Optical Coupling |
Voltage - Isolation 5300Vrms |
Current - Peak Output 2.5A |
Approvals CQC, cUR, UR, VDE |
Common Mode Transient Immunity (Min) 48kV/µs |
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns |
Pulse Width Distortion (Max) 300ns |
Rise / Fall Time (Typ) 100ns, 100ns |
Current - Output High, Low 2.5A, 2.5A |
Voltage - Forward (Vf) (Typ) 1.36V |
Current - DC Forward (If) (Max) 25mA |
Package_case 6-SOIC (0.295", 7.50mm Width), 5 Leads |
VOL3120-X001T Garantien
• Antworten Sie umgehend
• Garantierte Qualität
• Globaler Zugang
• Wettbewerbsfähiger Marktpreis
• One-Stop-Support für die Lieferkette
Jinftry, es ist Ihr vertrauenswürdigster Zulieferer. Bitte senden Sie uns die Anfrage. Vielen Dank!
Haben Sie Fragen zu VOL3120-X001T ?
Fühlen Sie sich frei uns zu kontaktieren:
+86-755-82518276
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( E-Mail zuerst wird dankbar sein )
Bemerkungen
Vishay Semiconductor Opto Division
Vishay - Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of ...
VOW3120-X017T
OPTOISO 5.3KV GATE DRIVER 8SMD

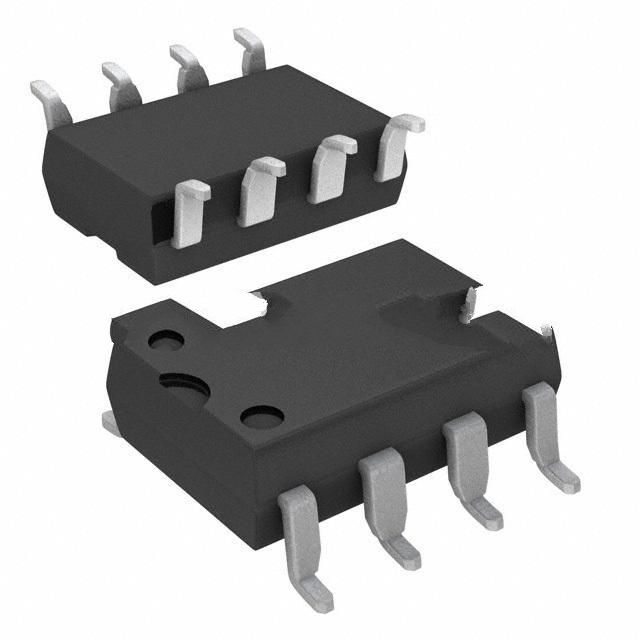

VOW137-X017T
OPTOISO 5.3KV GATE DRIVER 8SMD
SFH6755T
OPTOISO 5.3KV GATE DRIVER 8SMD
VO0630T
OPTOISO 5.3KV GATE DRIVER 8SMD

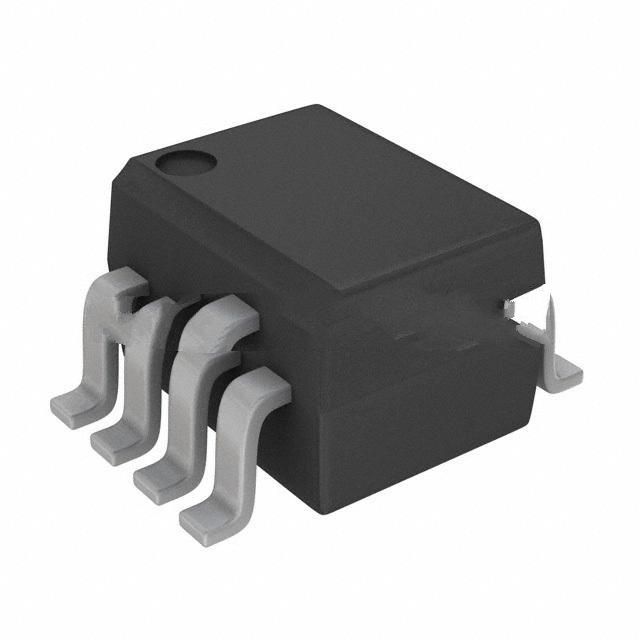

VO0600T
